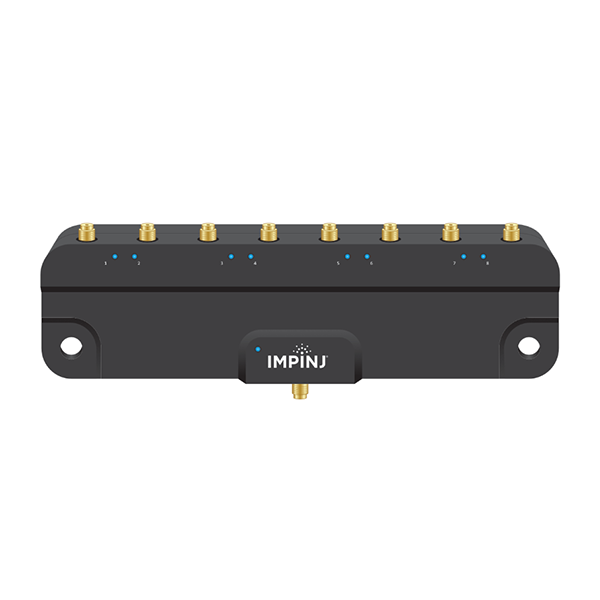

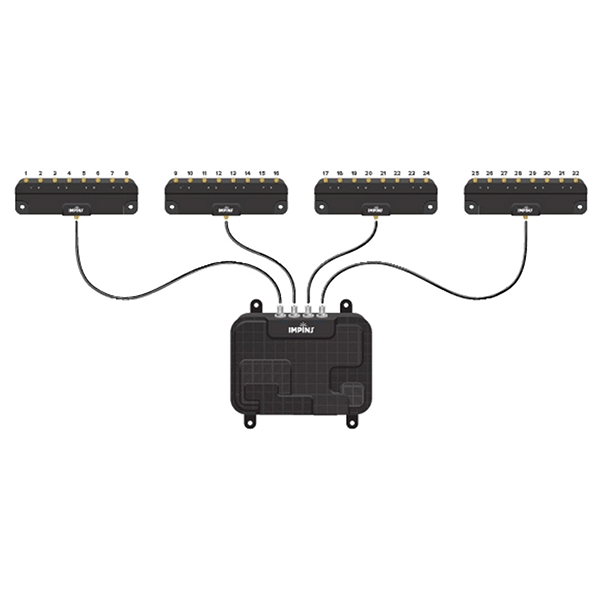

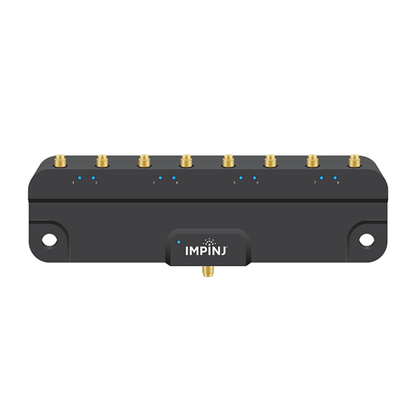

The Impinj Speedway Antenna Hub provides a low-cost opportunity to drive many antennas from a single fixed RAIN RFID reader. This antenna hub connects up to 32 antennas to a single Impinj Speedway R420 reader, up to 16 antennas to a single Impinj Speedway R220 reader (reader must be updated to the Firmware Version 7.6), and up to 8 antennas to a single Impinj Speedway R120 reader. The Speedway Antenna Hub makes RFID monitoring applications requiring many antennas, including large contiguous read zones and smart shelves, cost-effective, and easy to deploy.
